PLC for Injection Molding Machine

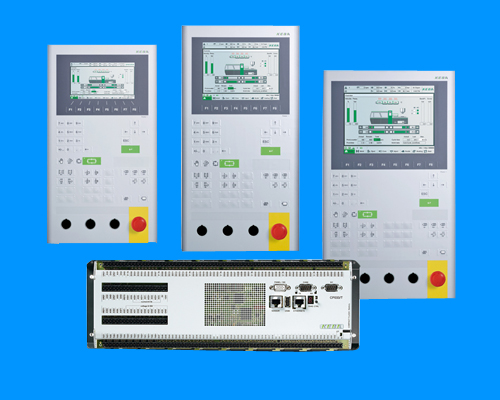

KEBA PLC

Thanks to its powerful computer core, the KePlast i1000 control system is real-time-capable, thereby enabling a continuously controlled quality of production.

  • For hydraulic standard injection molding machines
  • Ultra-compact, single-board computer
  • 7 to 12” TFT displays
  • Closed-loop injection process including monitoring by means of injection graphic.

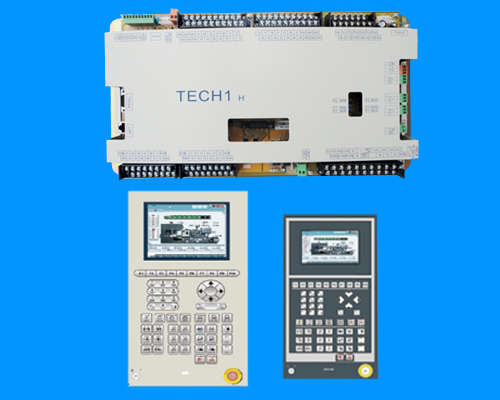

TECHMATION PLC

M8M 255(A) Panel (HMI)

Central Processor : Intel XScale PXA255

32 bit @ 400 MHz (ARM core)

LCD Type 8.4’’ Colour TFT
Baud Rate 38400 bps9 pin panel & Controller Cable Connector
Storage Temperature -40 -70 &  ̥C 60  ̥C
Network 1 Port
Memory Card SD Card
CENTRAL PROCESSOR :TMS320VC5402PGE100

(DSP 16 bit @80MHz)

Analog Input 4 Channels(Positon Pressure Sensor) 16 bit 0~ 10 Vdc
Analog Input 6 Zones
(Temperature) 5 Zones (barrel)+ 1 Zone(Hyd. Temperature)
Analog Output 3 Channels
(Proportional Value) 12 bit 0 ~ 1 Adcx3 + 0~+10 Vdc x2
Input 24 Points,Photo Couple isolated(Max. 40 Points)-EXD1088 Optional
Output 28 point (Max.40 Points) – EXDI 088 Optional
Relay Output 11 Points: 5 Points(Temperature)+ 3 points(Motor Start) + 3 points (Other)
